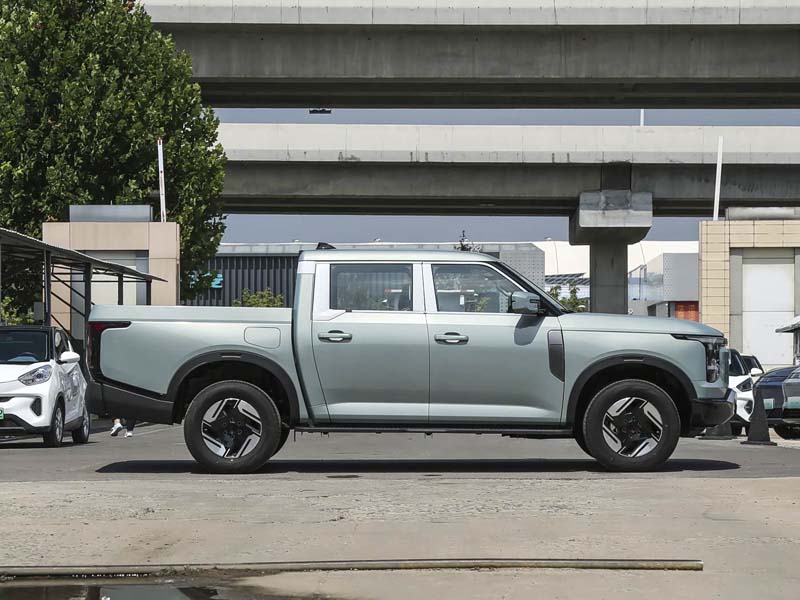

| Model | DF Z9 PHEV Vehicle model parameter configuration |
60KM
2WD | 60KM
4WD | 135KM
4WD | 135KM
4WD |
| Vehicle Dimensions (mm) | 5494x1960x1950 |
| Powertrain | Engine Model | DFMC15TE3 | ● | ● | ● | ● |
| China 6b+RDE+FE4 | ● | ● | ● | ● |
| Drive Motor Model | TZ220XY001 | ● | ● | ● | ● |
| Drive Motor Power (Rated/Max) | 74/156kW | ● | ● | ● | ● |
| Generator Model | TZ220XY002 | ● | ● | ● | ● |
| Generator Power (Rated/Max) | -60/-92kW | ● | ● | ● | ● |
| Fuel System | Fuel Type | Gasoline (#92) | ● | ● | ● | ● |
| Transmission System | Transmission | Driving Mode | ● | ● | ● | ● |
| 4DHT | ● | ● | ● | ● |
| Ball-type Shift Lever | ● | ● | ● | ● |
| Traction Battery | 17kwh | NEDC 60KM | ● | ● | - | - |
| 32.86kWh | NEDC 135KM | - | - | ● | ● |
| Drive & Suspension | Drive Type | 2WD | ● | - | - | - |
| 4WD (Electronic Control) | - | ● | ● | ● |
| 4WD System | Part-time 4WD | - | ● | ● | ● |
| Front Suspension Type | Double Wishbone+Stabilizer Bar | ● | ● | ● | ● |
| Rear Suspension Type | Leaf Spring | ● | ● | ● | - |
| 5-Link | - | - | - | ● |
| Braking System | Brakes | 4-Wheel Disc Brake | ● | ● | ● | ● |
| Parking Brake | Electronic Parking Brake | ● | ● | ● | ● |
| AUTOHOLD | ● | ● | ● | ● |
| Steering System | Steering Wheel | Foam | ● | ● | ● | - |
| Leatherette (Microfiber+Padding) | - | - | - | ● |
| 4-way Adjustable Steering Wheel | ● | ● | ● | ● |
| Multi-function Steering Wheel (Voice Ctrl, Audio, Cruise, Bluetooth, etc.) | ● | ● | ● | - |
| Multi-function Steering Wheel (Voice Ctrl, Audio, Adaptive Cruise, Bluetooth, etc.) | - | - | - | ● |
| Heated Steering Wheel | - | - | - | ● |
| Steering Gear | Electronic Power Steering | ● | ● | ● | ● |
| Wheels & Tires | Tire Specification | 265/70 R17 | ● | ● | - | - |
| 265/65 R18 | - | - | ● | ● |
| Wheel Rim | Alloy Wheel | ● | ● | ● | ● |
| Machined Bright Surface | - | - | ● | ● |
| Spray-on | ● | ● | - | - |
| PHEV Exclusive Design | ● | ● | ● | ● |
| Spare Tire |
|
|
|
|
|
| Tire Repair Kit | Tire Sealant+Air Pump | ● | ● | ● | ● |
| Doors & Door Panels | Child Lock | Rear Door | ● | ● | ● | ● |
| Smart Key | Keyless Entry (Driver)+Push Start+Immobilizer+Smart Key x1+Mechanical Key x2 | ● | ● | ● | - |
| Keyless Entry (Driver+Passenger)+Push Start+Immobilizer (x2) | - | - | - | ● |
| Seamless Welcome & Unlock | - | - | ● | ● |
| Seamless Bluetooth Key |
| - | - | - | ● |
| Glass | Front Door Glass | Green Glass | ● | ● | - | - |
| Green Glass+Laminated | - | - | ● | ● |
| Rear Door Glass | Green Glass | ● | ● | ● | ● |
| Windshield | Green Glass+UV Protection+Heat Rejection | ● | ● | ● | ● |
| Rear Window | Green Glass+Defrost Heating | - | - | - | ● |
| Green Glass | ● | ● | ● | - |
| Power Windows | Driver One-touch Up/Down+Anti-pinch | ● | ● | ● | - |
| 4-Door: One-touch Up/Down+Anti-pinch+Power; | - | - | - | ● |
Bumpers &
Grille | Front Bumper | Body-colored+Lower Air Deflector | ● | ● | ● | ● |
| Rear Bumper | Black Leather Grain | ● | ● | ● | ● |
| Mirrors | Outside Mirror (Body-colored+LED Turn Signal) | Power Adjust | ● | ● | ● | - |
| Power Adjust+Power Fold+Defrost+Puddle Lamp | o | o | o | ● |
| Mirror Auto-tilt on Reversing | - | - | - | ● |
| Manual Anti-glare | ● | ● | ● | ● |
| Wipers | Front Wiper (Boneless) | Sensing; High/Low/Auto Intermittent Adjustable | ● | ● | ● | ● |
| Badges | Body LOGO | Optional Nissan Badge (+¥260, excl. Steering Wheel LOGO, Steering Wheel "Z") | ● | ● | ● | ● |
| Body Accessories | Fuel/Charging Port | Opposite Side+Power Operated | ● | ● | ● | ● |
| Engine Front Under Guard | Resin | ● | ● | ● | ● |
| Engine Under Cover | Steel | ● | ● | ● | ● |
| Transmission Under Cover | Resin | ● | ● | ● | ● |
| Side Steps | Optional Genuine Fixed Steps (+¥3500) | o | o | o | o |
| Roof Rack | Optional Genuine Aluminum Rack (+¥3000) | o | o | o | o |
| Front Tow Hook | 1 pc | ● | ● | ● | ● |
| Panoramic Sunroof | Power Sunroof+Power Sunshade | - | - | - | ● |
| Roll Bar | Optional Genuine Aluminum Roll Bar (+¥1500) | o | o | o | o |
| Rear Tow Hook | 1 pc | - | - | - | ● |
| Modification Interface | 4 pcs (Engine Bay x1/Cabin Ceiling x1/Chassis x1/Under Seat x1) | - | - | - | ● |
| Fixed Interior Tie Hooks | 4 pcs | ● | ● | ● | ● |
| Tailgate Mechanical Lock |
| ● | ● | ● | - |
| Tailgate Central Lock | With Micro Switch | o | o | o | ● |
| Cargo Box Access Step | Power (Optional Genuine Step +¥4500) | o | o | o | ● |
| Tailgate Soft Close | With Cable+Damping+Assist | ● | ● | ● | ● |
| Power Tailgate (incl. Central Lock) |
| - | - | - | ● |
| Tailgate Protector | Spray-on | ● | ● | ● | ● |
| Lighting | Headlights | Full LED | ● | ● | ● | ● |
| Auto Headlights+Delay Off+Super Low Beam | ● | ● | ● | ● |
| Auto High/Low Beam Adjustment | - | - | - | ● |
| Electrically Adjustable Height | ● | ● | ● | ● |
| Sequential Turn Signal | - | - | ● | ● |
| Headlight Welcome (Remote Key) | - | - | ● | ● |
| Headlight Welcome (Seamless) | - | - | ● | ● |
| Full-width Light | Front+LED | - | - | ● | ● |
| Rear+LED | - | - | - | ● |
| Front Fog Lamp | LED+Cornering Assist | - | - | ● | ● |
| Rear Fog Lamp+Rear Reversing Lamp | Dual Fog+Dual Reverse | ● | ● | ● | ● |
| High-mount Stop Lamp (LED) |
| ● | ● | ● | ● |
| Rear Combination Lights | LED | ● | ● | ● | ● |
| LED Daytime Running Lights | Integrated in Headlights | ● | ● | ● | ● |
| License Plate Light | Halogen | ● | ● | ● | ● |
| Footwell Light |
| - | - | - | ● |
| Cargo Light | Integrated in High-mount Stop Lamp | ● | ● | ● | ● |
| Instrument Cluster | LCD Instrument Cluster (10") | Color | ● | ● | ● | ● |
| Multi-screen Linkage |
| ● | ● | ● | ● |
| Audio & Multimedia | 12.8" Display | Bluetooth+Voice Control+WiFi Module+OBD Display, etc. | ● | ● | ● | - |
| 14.6" Display | Bluetooth+Voice Control+WiFi Module+OBD Display, etc. | - | - | - | ● |
| Speakers | 4个(2低+2全频扬声器)4 pcs (2 Woofer+2 Full-range) | ● | ● | ● | - |
| 6 pcs (2 Tweeter+2 Woofer+2 Full-range) | - | - | - | ● |
| Multi-scenario Smart Interaction | Nap/Camping/Guard | - | - | - | ● |
| Air Conditioning | Automatic A/C | Single Zone | ● | ● | ● | - |
| Dual Zone | - | - | - | ● |
| In-vehicle PM2.5 Filter | ● | ● | ● | ● |
| Rear Row | Air Outlet: Face-level | ● | ● | ● | ● |
| Air Outlet: Foot-level | - | - | - | ● |
| Electrical Accessories | AC Charging | 6.6KW | ● | ● | ● | ● |
| DC Fast Charging |
| - | - | ● | ● |
| 12V Power Outlet | 1 Front | ● | ● | ● | ● |
| Wireless Phone Charging | Front, 50W | - | - | o | ● |
| USB Port | 2 Front (10W+27W) | ● | ● | ● | ● |
| 1 Rear (27W) | - | - | - | ● |
| V2V & V2L Charging | 6KW | ● | ● | ● | ● |
| Cargo Box 6kW Power Panel | 220V/10A: 3-pin & 2-pin x1
220V/16A: 3-pin x1
12V/10A: Round x1 | o | o | ● | ● |
| Interior | PHEV Interior Color | Black | ● | ● | ● | o |
| Blue | - | - | - | ● |
| Orange | - | - | o | o |
| Sun Visor | Driver: Sun Visor, Soft PVC | ● | ● | - | - |
| Driver: Sun Visor, Soft PVC, Vanity Mirror+Lamp | - | - | ● | ● |
| Passenger: Sun Visor, Soft PVC | ● | ● | - | - |
| Passenger: Sun Visor, Soft PVC, Vanity Mirror+Lamp | - | - | ● | ● |
| Seats & Seat Belts | Seat Fabric | Synthetic Leather-PVC | ● | ● | ● | - |
| Seat Fabric |
|
|
|
|
|
| Seat Fabric | Genuine Leather | - | - | - | ● |
| Driver Seat Adj. (with Flat-folding) | 6-way Manual Adjustment | ● | ● | - | - |
| 6-way Power Adjustment | - | - | ● | - |
| 6-way Power: Cushion+Back Vent 3-level, Heat 3-level (+¥3500) | - | - | o | - |
| 12-way Power (4-way Power Lumbar): Cushion+Back Vent 3-level, Heat 3-level, Memory 3-level+Welcome | - | - | - | ● |
| Seat Back Massage | - | - | - | ● |
| Passenger Seat Adjustment | 4-way Manual Seat | ● | ● | ● | - |
| 4-way Power Seat: Vent 3-level, Heat 3-level (+¥3500) | - | - | o | - |
| 4-way Power: Cushion+Back Vent 3-level, Heat 3-level, Memory 3-level+Welcome | - | - | - | ● |
| 2nd Row Seat Type | 40/60 Flip-up Cushion | ● | ● | ● | ● |
| Reclining Backrest (25°-29°) | ● | ● | ● | ● |
| Under-cushion Storage Box (Quick Detachable) | - | - | - | ● |
| 40/60 Fold-down Backrest | ● | ● | ● | ● |
| Child Seat Interface | ISOfix | ● | ● | ● | ● |
| Safety | Airbags | Driver+Passenger | ● | ● | ● | ● |
| Side Airbags | - | - | o | ● |
| Side Curtain Airbags | - | - | - | ● |
| ESC | ABS+EBD+TCS+VDC+HBA+HHC+RMI+HAZ+HDC | ● | ● | ● | ● |
| Tire Pressure Monitoring | ● | ● | ● | ● |
| Front Radar | o | o | o | ● |
| Reversing Radar | ● | ● | ● | ● |
| Reversing Camera | ● | ● | ● | - |
| 540° Surround View | o | o | o | ● |
| Cruise Control | ● | ● | ● | - |
| Rear Axle Differential Lock | Electronic Control (+¥7500) | - | - | o | o |
| Others | Power Side Steps | - | - | - | ● |
| Vehicle Tools | Warning Triangle | ● | ● | ● | ● |
| Jack | o | o | o | o |
| Symbol description: ① "●" indicates standard configuration; "-" indicates no such equipment; "○" indicates optional. ② The combination of optional items is listed partially, and the specifics are subject to the market launch. ZZDFIE may make adjustments at any time and reserves the right of final interpretation. |
